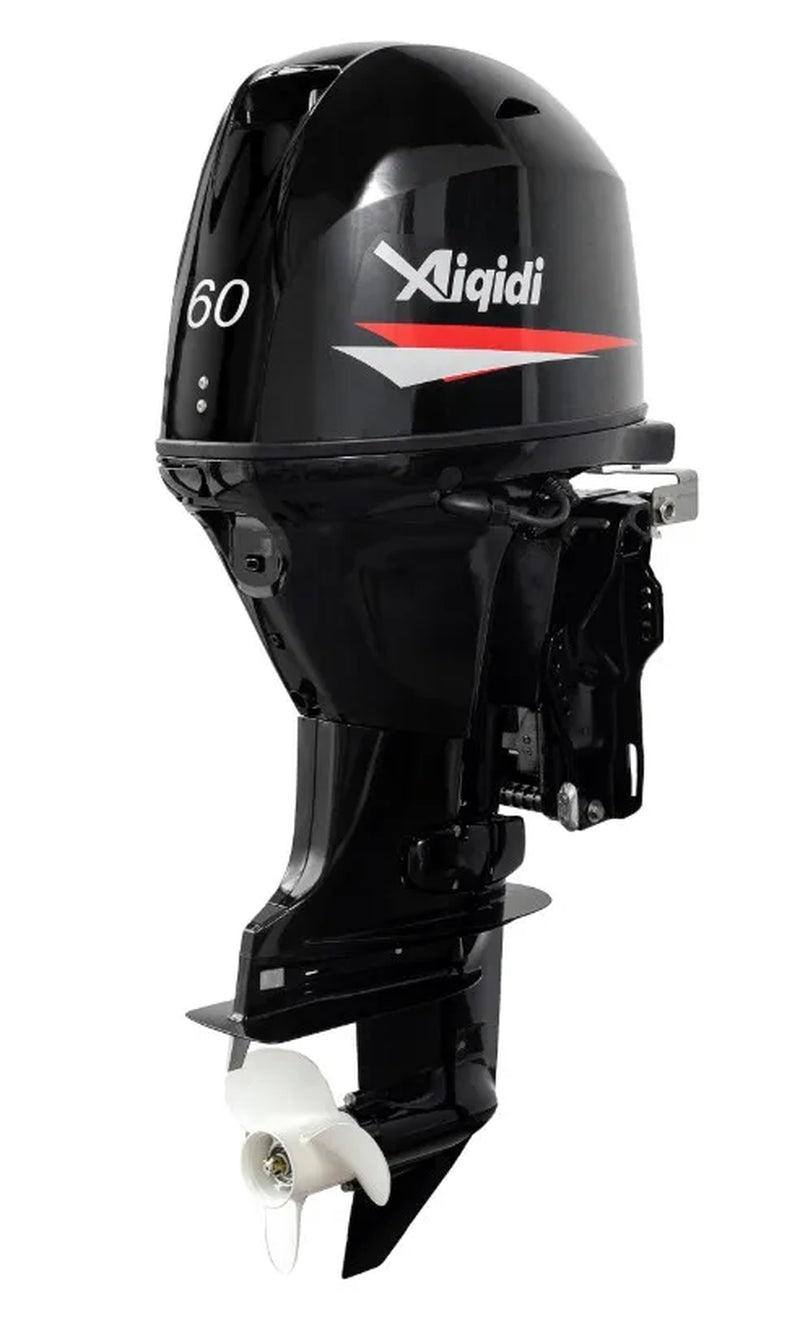

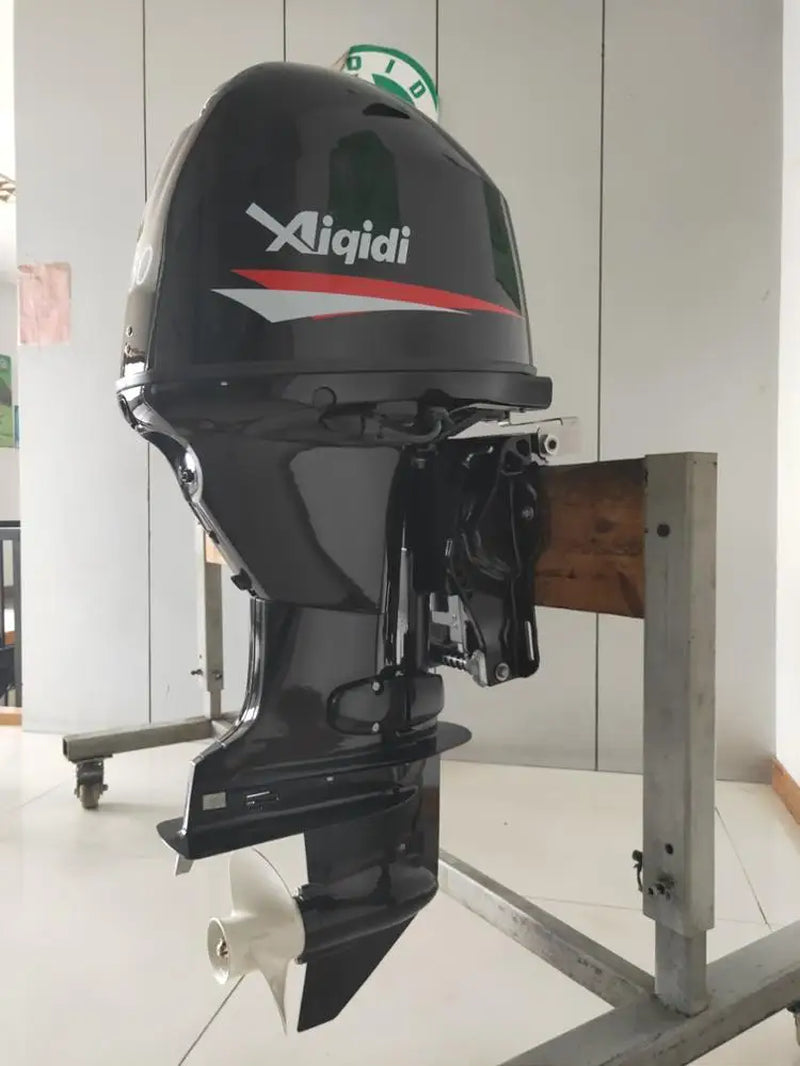

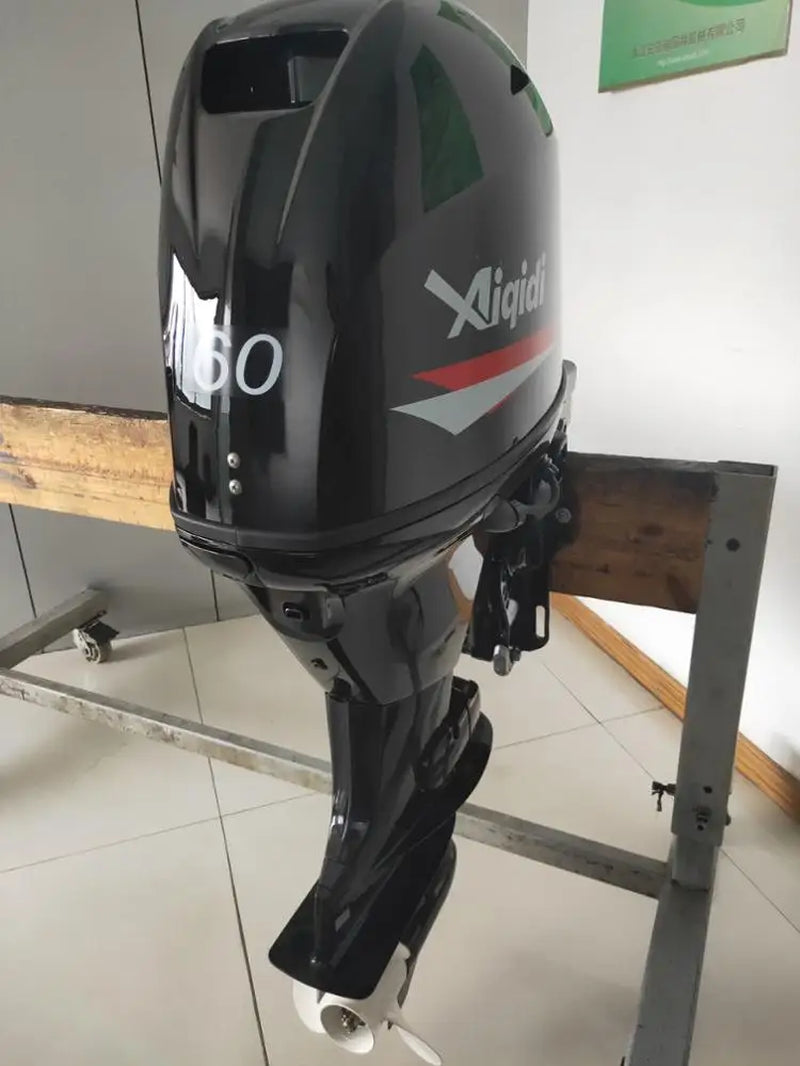

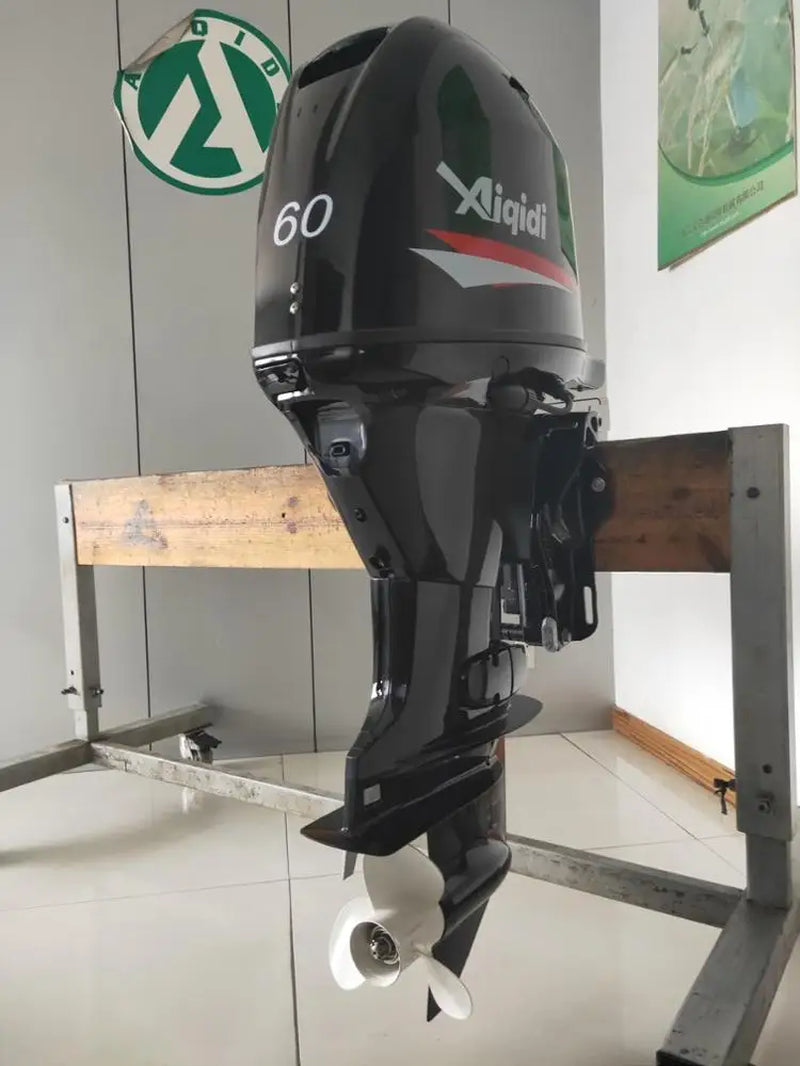

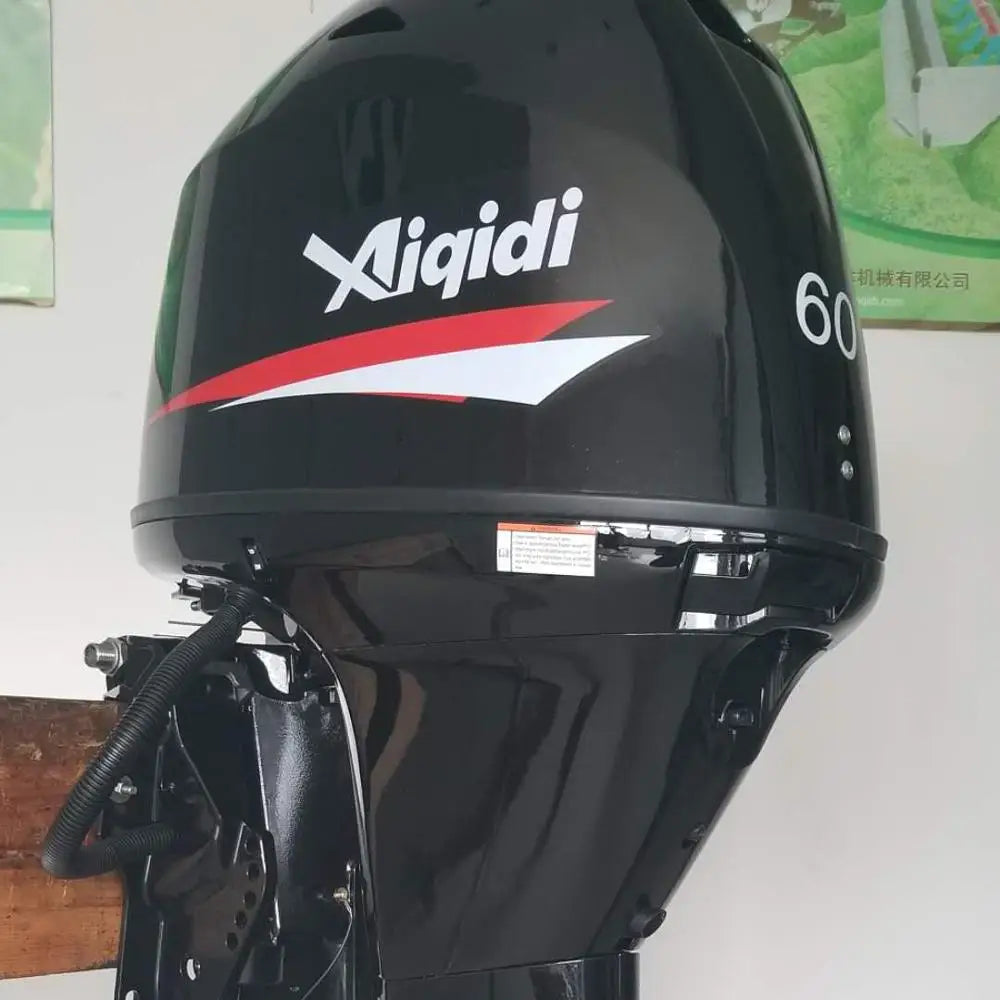

4 Stroke Engine and Gasoline Fuel Type Aiqidi 60Hp 4-Stroke Outboard Motor

Aiqidi 60HP OUTBOARD MOTORS SPECIFICATIONS

ITEM

F60FETL

Engine type

4-stroke,4-cylinders, SOHC, 8-valve

Displacement

996 cc

Bore x Stroke mm(in.)

65.0×75.0(2.56×2.95)

Max output kw(hp)

44.1(60)@5500rpm

Full throttle RPM range

5000~6000

Ignition system

C.D.I.

Fuel delivery system

Electronic Fuel Injection

Ignition timing

Micro Computer

Starting system

Electric start(Turn-key)

Steering system

Remote control

Gear shift

Forward-Neutral-Reverse

Gear ratio

1.85 (24/13)

Trim and tilt system

Electric tilt

Max fuel consumption

20 L/h

Fuel tank capacity

24L

Sump oil capacity

2.5L

Gear oil capacity

430cc

Dry weight

110kg~113kg

Overall width mm(in.)

427(16.8)

Recommended transom height

508mm (20 in.)

Alternator output

12V DC

Propeller options*

3-11.12 x 13" (standard) or 3-11.38 x 12"

*Propeller choice will vary by boat size and application.

*B=Back control (Tiller control), M=Manual start, S=Short shaft, L=Long shaft, E=Electric start, F=Front control (Remote control),T=Electric tilt

EFI= Electronic Fuel Injection
